RDP Wrapper Library

Maintained fork by @sjackson0109 — based on the original work by Stas'M / binarymaster.

The goal of this project is to enable Remote Desktop Host support and concurrent RDP sessions on reduced functionality systems for home usage.

RDP Wrapper works as a layer between Service Control Manager and Terminal Services, so the original termsrv.dll file remains untouched. Also this method is very strong against Windows Update.

Historical screenshots (Vista / 7 / 8 / 10 from the original Stas'M project) are archived at: https://web.archive.org/web/2015*/http://stascorp.com/images/rdpwrap/*

Screenshots

Screenshots are captured on Windows 11 after a successful install.
Source files live in docs/images/ — see the capture guide if you want to contribute updated screenshots.

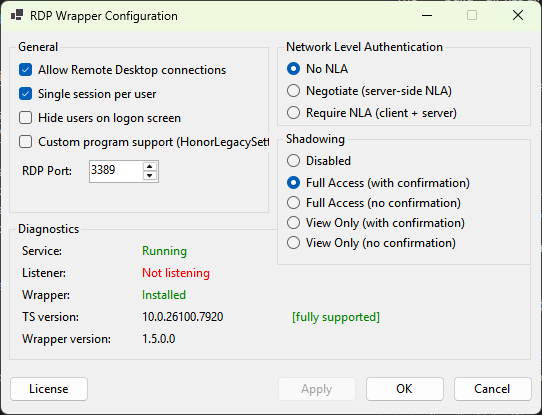

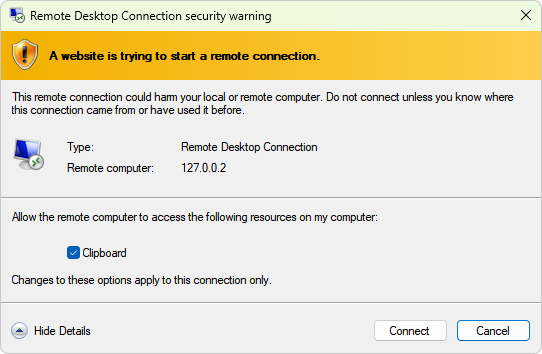

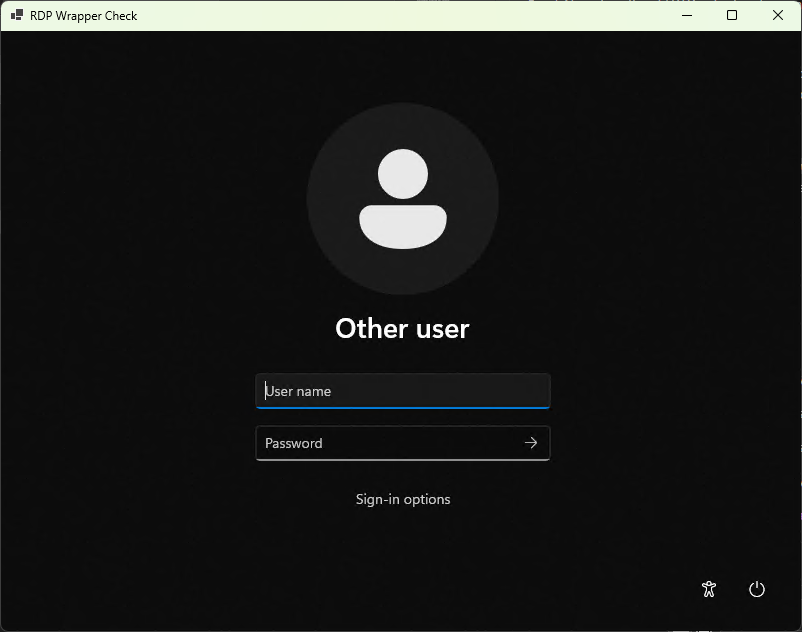

RDPConf — configuration	RDPCheck — supported	RDPCheck — warning

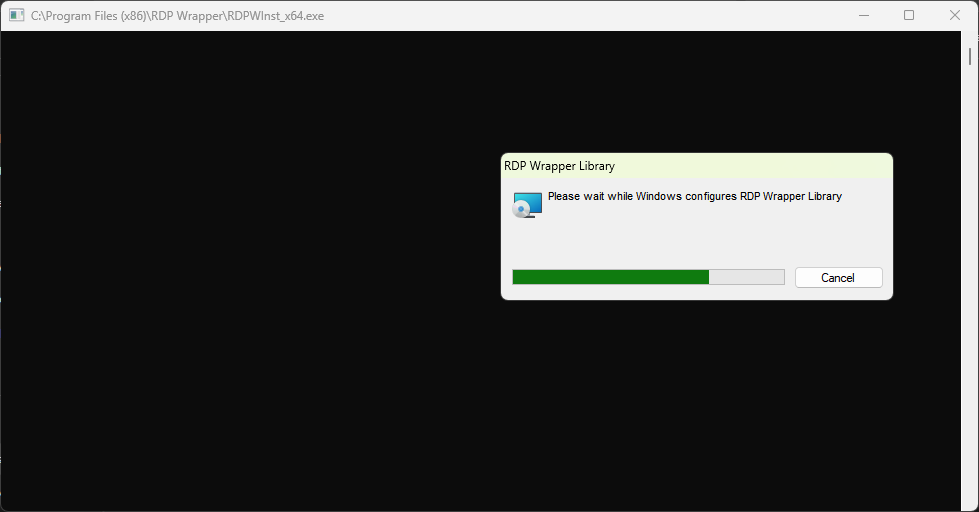

MSI Installer — welcome	MSI Installer — complete

This solution was inspired by Windows Product Policy Editor, big thanks to kost :)

— binarymaster

Attention:

It's recommended to have original termsrv.dll file with the RDP Wrapper installation. If you have modified it before with other patchers, it may become unstable and crash in any moment.

Information:

Source code is available, so you can build it on your own
RDP Wrapper does not patch termsrv.dll, it loads termsrv with different parameters
RDPWInst and RDPChecker can be redistributed without development folder and batch files
RDPWInst can be used for unattended installation / deployment
Windows 2000, XP and Server 2003 will not be supported

Key features:

RDP host server on any Windows edition beginning from Vista through Windows 11
Console and remote sessions at the same time
Using the same user simultaneously for local and remote logon (see configuration app)
Up to 15 concurrent sessions (the actual limitation depends on your hardware and OS version)
Console and RDP session shadowing (using Task Manager in Windows 7 and lower, and Remote Desktop Connection in Windows 8 and higher)
Full multi-monitor support for RDP host
Automatic INI updates — the installer fetches the latest rdpwrap.ini directly from GitHub Releases, published automatically by CI/CD on every change
Auto-generation of offsets for unknown builds — if your termsrv.dll version is not yet in the INI, the installer downloads RDPWrapOffsetFinder and generates the missing section on-the-fly (inspired by sergiye/rdpWrapper)
...and if you find a new feature not listed here, tell us ;)

Porting to other platforms:

ARM for Windows RT (see links below)
IA-64 for Itanium-based Windows Server? Well, I have no idea :)

Repository structure:

├── msi/                        # WiX v5 MSI project + INI offset databases (rdpwrap.ini, rdpwrap-arm-kb.ini)
├── docs/                       # Developer documentation
├── src-x86-x64-Fusix/          # C++ — core rdpwrap.dll (native Win32, MSVC)
└── src-csharp/                 # C# .NET 10 — all management-plane tools
    ├── Directory.Build.props   # Shared build settings (framework, author metadata)
    ├── RDPWrap.sln             # Visual Studio solution
    ├── RDPWrap/                # Shared helper library (P/Invoke, registry, service helpers)
    ├── RDPWInst/               # Command-line installer / uninstaller
    ├── RDPConf/                # WinForms configuration GUI
    ├── RDPCheck/               # WinForms RDP loopback tester
    └── RDPOffsetFinder/        # Git submodule — llccd/RDPWrapOffsetFinder (C++)
        └── zydis/              # Git submodule — zyantific/zydis disassembler

Building the binaries:

Prerequisites

.NET SDK 10 — all C# tools (src-csharp/)
- Download: https://dotnet.microsoft.com/download/dotnet/10.0
Visual Studio 2022 / MSVC Build Tools v143 — two C++ components:
- src-x86-x64-Fusix/ — core rdpwrap.dll
- src-csharp/RDPOffsetFinder/ — offset finder (pulled via git submodule)

Clone with submodules

git clone --recurse-submodules https://github.com/sjackson0109/rdpwrap.git
# or if already cloned:
git submodule update --init --recursive

Build C# tools locally

# Debug build (both platforms)
dotnet build src-csharp/RDPWrap.sln -p:Platform=x64
dotnet build src-csharp/RDPWrap.sln -p:Platform=x86

# Release publish — single-file EXE (requires .NET 10 Desktop Runtime on target)
dotnet publish src-csharp/RDPWInst/RDPWInst.csproj  -c Release -r win-x64 -p:PublishSingleFile=true -p:SelfContained=false
dotnet publish src-csharp/RDPConf/RDPConf.csproj    -c Release -r win-x64 -p:PublishSingleFile=true -p:SelfContained=false
dotnet publish src-csharp/RDPCheck/RDPCheck.csproj  -c Release -r win-x64 -p:PublishSingleFile=true -p:SelfContained=false

Build `rdpwrap.dll` locally

msbuild src-x86-x64-Fusix/RDPWrap.vcxproj /p:Configuration=Release /p:Platform=x64 /p:PlatformToolset=v143

Build `RDPWrapOffsetFinder` locally

# Build Zydis DLL first
msbuild src-csharp/RDPOffsetFinder/zydis/msvc/zydis/Zydis.vcxproj /p:Configuration="Release MD DLL" /p:Platform=x64 /p:PlatformToolset=v143
# Then build the offset finder
msbuild src-csharp/RDPOffsetFinder/RDPWrapOffsetFinder/RDPWrapOffsetFinder.vcxproj /p:Configuration=Release /p:Platform=x64 /p:PlatformToolset=v143

CI/CD Pipelines:

Workflow	Trigger	Output
build-and-release.yml	Push to `main`/`master` touching any source, INI, or the workflow file itself; or manual	Canonical GitHub Release — DLLs (x64/x86/arm64), C# tools, MSI packages, self-contained bundles, OffsetFinder, `rdpwrap.ini`, `rdpwrap-arm-kb.ini`
build-csharp.yml	PR to `main`/`master` touching `src-csharp/*`; version tag push (`v`); or manual	PR compile check + artifact upload (no release) — use `build-and-release.yml` for a full release
build-cpp.yml	PR to `main`/`master` touching `src-x86-x64-Fusix/*`; version tag push (`v`); or manual	PR compile check + artifact upload (no release) — use `build-and-release.yml` for a full release
build-offsetfinder.yml	PR to `main`/`master` touching `src-csharp/RDPOffsetFinder/*`; version tag push (`v`); or manual	PR compile check + artifact upload (no release) — use `build-and-release.yml` for a full release

Files in release package:

File name	Architecture	Description
`RDPWInst_x64.exe`	x64	RDP Wrapper Library installer/uninstaller (C#, requires .NET 10)
`RDPWInst_x86.exe`	x86	RDP Wrapper Library installer/uninstaller (C#, requires .NET 10)
`RDPCheck_x64.exe`	x64	Local RDP Checker — verify RDP is working (C#, requires .NET 10)
`RDPCheck_x86.exe`	x86	Local RDP Checker — verify RDP is working (C#, requires .NET 10)
`RDPConf_x64.exe`	x64	RDP Wrapper Configuration GUI (C#, requires .NET 10)
`RDPConf_x86.exe`	x86	RDP Wrapper Configuration GUI (C#, requires .NET 10)
`rdpwrap_x64.dll`	x64	Core RDP Wrapper DLL (C++, no runtime required)
`rdpwrap_x86.dll`	x86	Core RDP Wrapper DLL (C++, no runtime required)
`rdpwrap.ini`	—	Offset database (updated automatically on every INI push)

Frequently Asked Questions

Where can I download the installer or binaries?

In the GitHub Releases section.

Is it legal to use this application?

There is no definitive answer, see this discussion.

The installer tries to access the Internet, is it normal behaviour?

Yes, it works in online mode by default. You may disable it by passing -i without the -o flag: RDPWInst_x64.exe -i.

What is online install mode?

Online install mode was introduced in version 1.6.1. When installing for the first time using this mode, the installer downloads the latest rdpwrap.ini from this repository's GitHub Releases — published automatically by CI/CD whenever msi/rdpwrap.ini is updated. If your termsrv.dll version is not yet listed in the downloaded INI, the installer will additionally download RDPWrapOffsetFinder and attempt to auto-generate the missing offsets on the spot.

What is INI file and why we need it?

INI file was introduced in version 1.5. It stores system configuration for RDP Wrapper — general wrapping settings, binary patch codes, and per build specific data. When new termsrv.dll build comes out, developer adds support for it by updating INI file in repository.

Config Tool reports version 1.5, but I installed higher version. What's the matter?

Beginning with version 1.5 the rdpwrap.dll is not updated anymore, since all settings are stored in INI file. Deal with it.

Config Tool shows [not supported] and RDP doesn't work. What can I do?

Make sure you're connected to the Internet and run RDPWInst_x64.exe -w from an Administrator command prompt. This will download the latest INI from GitHub Releases and, if your termsrv.dll version is still missing, will automatically run RDPWrapOffsetFinder to generate offsets for your specific build.

Update doesn't help, it still shows [not supported].

Check the issues section to see if your termsrv.dll build is mentioned. If not, please open a new issue with your exact build version (shown by the Config Tool). You can also run RDPWInst.exe -w from an Administrator command prompt to see the full output of the update and auto-generation steps.

Why RDPCheck doesn't allow to change resolution and other settings?

RDPCheck is a very simple application and only for testing purposes. You need to use Microsoft Remote Desktop Client (mstsc.exe) if you want to customize the settings. You can use 127.0.0.1 or 127.0.0.2 address for loopback connection.

Known issues:

Beginning with Windows 8 on tablet PCs inactive sessions will be logged out by system - more info
Beginning with Windows 10 you can accidentally lock yourself from PC - more info
Beginning with the Creators Update for Windows 10 Home, RDP Wrapper will no longer work, claiming that the listener is [not listening] because of rfxvmt.dll is missing - more info, download links
Terminal Service does not start after installing some updates or "Access Denied" issue - #215, #101
RDP Wrapper does not work with RemoteFX enabled hosts - #127, #208, #216
RDP works, but termsrv.dll crashes on logon attempt - Windows Vista Starter RTM x86 (termsrv.dll 6.0.6000.16386)
If Terminal Services hangs at startup, try to add rdpwrap.dll to antivirus exclusions. Also try to isolate RDP Wrapper from other shared services by the command:
sc config TermService type= own
RDP Wrapper can be removed by AVG Free Antivirus and Norton Antivirus - first make sure you downloaded official release from GitHub, then add it to exclusions.

Change log:

2026.03.31

Repository housekeeping — removed six obsolete files: res/legacy.install.bat, res/clearres.bat, res/build_wxs.bat, res/RDPWInst.wxs (WiX v3.11 MSI, unmaintained), res/rdpwrap-ini-kb.txt (stale 2018 INI snapshot), and empty src-csharp/RDPWrap.Common/ stub directory
bin/install.bat, bin/uninstall.bat, bin/update.bat — rewritten with architecture detection; now invoke the correct RDPWInst_x64.exe / RDPWInst_x86.exe (previously called non-existent RDPWInst.exe); later removed in favour of the MSI installer
CI/CD: build-cpp.yml, build-csharp.yml, build-offsetfinder.yml — standalone release jobs removed; build-and-release.yml is now the sole release publisher, eliminating duplicate partial releases on tag pushes
build-csharp.yml runner harmonised to windows-2022; hardcoded signtool.exe SDK path replaced with glob-based discovery
build-and-release.yml — added embedded-resource staging step (copies built DLLs + INI into RDPWInst/Resources/ before dotnet publish, enabling offline bundled install); added SHA-256 audit log for third-party sergiye binaries; msi/rdpwrap-arm-kb.ini added to release assets
ARM64 support — Release|ARM64 added to src-x86-x64-Fusix/RDPWrap.vcxproj; build-cpp.yml and build-and-release.yml now build and ship rdpwrap_arm64.dll; build-csharp.yml and build-and-release.yml publish RDPWInst_arm64.exe, RDPConf_arm64.exe, RDPCheck_arm64.exe; Directory.Build.props adds arm64 to Platforms
WiX v5 MSI packaging — new msi/RDPWInst.wxs (WiX v5 schema v4, dual-arch, MajorUpgrade) and msi/RDPWInst.wixproj; replaces the deleted v3.11 artefacts; MSI build steps are now inlined into build-and-release.yml (a standalone build-msi.yml was created then removed as redundant)
Self-contained publish — build-and-release.yml produces *_x64_sc.exe, *_x86_sc.exe, *_arm64_sc.exe for all three C# tools and bundles them into RDPWrapper-SelfContained.zip; users without .NET 10 Desktop Runtime can use these
Version stamp automation — build-and-release.yml computes a yyyy.M.d stamp and passes -p:Version= to every dotnet publish call; Directory.Build.props documents the CI override pattern
Changelog automation — build-and-release.yml now includes a Generate changelog step that queries merged PRs since the previous release and embeds them in the GitHub Release body
Dependabot — .github/dependabot.yml added for github-actions and nuget ecosystems (weekly, Monday schedule)
Sergiye hash-pin scaffold — tools/sergiye-hashes.json created; build-and-release.yml validates downloaded rdpWrapper_*.exe hashes against this file when populated
Code-signing guide added — docs/CODE-SIGNING.md documents certificate acquisition, PFX export, base64 encoding, and GitHub secret upload; the signing step in build-and-release.yml and build-csharp.yml fires automatically once CODESIGN_CERT_BASE64 and CODESIGN_CERT_PASSWORD secrets are set
Sergiye hash pins live — tools/update-sergiye-hashes.ps1 automation script created; tools/sergiye-hashes.json populated with verified SHA-256 hashes for sergiye/rdpWrapper release 2.10; build-and-release.yml hash-verification step is now enforcing the pinned values
Screenshot infrastructure — docs/images/ directory and capture guide created; README restored with four-cell screenshot table using relative in-repo paths (PNG files pending first capture)
Submodule shallow-clone — shallow = true added to .gitmodules; docs/SUBMODULE-UPDATE.md documents check-out, update, and rollback procedures (RDPOffsetFinder is already pinned to v0.9)
tools/ reference added to docs/ — update-sergiye-hashes.ps1 is self-documenting via Get-Help; CODE-SIGNING.md, SUBMODULE-UPDATE.md, images/README.md added to docs/

2026.03.30

Full C# port complete — RDPWInst, RDPConf, RDPCheck, and shared library all ported from Delphi to C# / .NET 10; Delphi is no longer required to build
Obsolete Delphi source folders removed (src-installer/, src-rdpcheck/, src-rdpconfig/, src-x86-binarymaster/)
Shared library renamed from RDPWrap.Common/ to RDPWrap/ for a cleaner folder layout; namespace RDPWrap.Common preserved for source compatibility
llccd/RDPWrapOffsetFinder added as a git submodule at src-csharp/RDPOffsetFinder/ (including nested zydis → zycore submodules) — offset finder now built from source rather than fetching pre-built binaries
Pre-built binary cache (tools/RDPWrapOffsetFinder/) and update-finder-tools.yml workflow removed; build-and-release.yml now builds the offset finder directly from the submodule
New workflow build-offsetfinder.yml — builds RDPWrapOffsetFinder + Zydis.dll for x64 and Win32 from source on version tag push
New workflow build-csharp.yml — publishes self-contained single-file x64/x86 EXEs on version tag push; optional signtool.exe code-signing step wired to CODESIGN_CERT_BASE64 / CODESIGN_CERT_PASSWORD repository secrets
build-and-release.yml updated — checkout uses submodules: recursive; builds and bundles RDPWInst, RDPConf, RDPCheck, and RDPWrapOffsetFinder (all x64 + x86) alongside the existing DLL and INI assets
Author metadata (Simon Jackson / @sjackson0109, copyright, repository URL) embedded into all four C# assemblies via Directory.Build.props
src-csharp/Directory.Build.props targets net10.0-windows; x86 and x64 platforms; Nullable + ImplicitUsings enabled

2026.03.29

Fork maintained by @sjackson0109
INI source redirected from unmaintained stascorp upstream to this repository's GitHub Releases
CI/CD pipeline added — build-and-release.yml publishes rdpwrap.ini and the RDPWrapOffsetFinder tools as release assets on every INI change
CI/CD pipeline added — build-cpp.yml builds rdpwrap_x64.dll / rdpwrap_x86.dll via MSVC v143 (VS 2022) on version tag push
Auto-offset generation added to RDPWInst.dpr — on install (-i) and update (-w), if the running termsrv.dll version is absent from the INI the installer downloads RDPWrapOffsetFinder from release assets and appends the generated [x.x.xxxxx.xxxxx] section automatically; inspired by sergiye/rdpWrapper
New installer helpers: DownloadFileToDisk, INIHasSection, TryAutoGenerateOffsets

2017.12.27

Version 1.6.2
Installer updated
Include updated INI file for latest Windows builds
Added check for supported Windows versions (#155)
Added feature to take INI file from current directory (#300)
Added feature to restore rfxvmt.dll (missing in Windows 10 Home #194)
RDP Config updated
Added feature to allow custom start programs (#13 (comment))
MSI installation package added (#14)

2016.08.01

Version 1.6.1
Include updated INI file for latest Windows builds
Installer updated
Added online install mode
Added feature to keep settings on uninstall
RDP Config updated
Fixed update firewall rule on RDP port change
Added feature to hide users on logon

2015.08.12

Version 1.6
Added support for Windows 10
INI file has smaller size now - all comments are moved to KB file
Installer updated
Added workaround for 1056 error (although it isn't an error)
Added update support to installer
Newest RDPClip versions are included with installer
RDP Checker updated
Changed connect IP to 127.0.0.2
Updated some text messages
RDP Config updated
Added all possible shadowing modes
Also it will write settings to the group policy

2014.12.11

Version 1.5
Added INI config support
Configuration is stored in INI file now
We can extend version support without building new binaries
Added support for Windows 8.1 with KB3000850
Added support for Windows 10 Technical Preview Update 2
Installer updated
RDP Config updated
Diagnostics feature added to RDP Config

2014.11.14

Version 1.4
Added support for Windows 10 Technical Preview Update 1
Added support for Windows Vista SP2 with KB3003743
Added support for Windows 7 SP1 with KB3003743
Added new RDP Configuration Program

2014.10.21

Installer updated
Added feature to install RDP Wrapper to System32 directory
Fixed issue in the installer - NLA setting now remains unchanged
Local RDP Checker updated
SecurityLayer and UserAuthentification values changed on check start
RDP Checker restores values on exit

2014.10.20

Version 1.3
Added support for Windows 10 Technical Preview
Added support for Windows 7 with KB2984972
Added support for Windows 8 with KB2973501
Added extended support for Windows Vista (SP0, SP1 and SP2)
Added extended support for Windows 7 (SP0 and SP1)
Some improvements in the source code
Installer updated to v2.2
Fixed installation bug in Vista x64 (wrong expand path)
Local RDP Checker updated
Added description to error 0x708

2014.07.26

Version 1.2
Added support for Windows 8 Developer Preview
Added support for Windows 8 Consumer Preview
Added support for Windows 8 Release Preview
Added support for Windows 8.1 Preview
Added support for Windows 8.1
More details you will see in the source code
Installer updated to v2.1

2013.12.09

C++ port of RDP Wrapper was made by Fusix
x64 architecture is supported now
Added new command line installer v2.0
Added local RDP checker
Source code (C++ port, installer 2.0, local RDP checker) is also included

2013.10.25

Version 1.1 source code is available

2013.10.22

Version 1.1
Stable release
Improved wrapper (now it can wrap internal unexported termsrv.dll SL Policy function)
Added support for Windows 8 Single Language (tested on Acer Tablet PC with Intel Atom Z2760)

2013.10.19

Version 1.0
First [beta] version
Basic SL Policy wrapper

Supported Terminal Services versions:

6.0.X.X (Windows Vista / Server 2008)
6.0.6000.16386 (Windows Vista)
6.0.6001.18000 (Windows Vista SP1)
6.0.6002.18005 (Windows Vista SP2)
6.0.6002.19214 (Windows Vista SP2 with KB3003743 GDR)
6.0.6002.23521 (Windows Vista SP2 with KB3003743 LDR)
6.1.X.X (Windows 7 / Server 2008 R2)
6.1.7600.16385 (Windows 7)
6.1.7600.20890 (Windows 7 with KB2479710)
6.1.7600.21316 (Windows 7 with KB2750090)
6.1.7601.17514 (Windows 7 SP1)
6.1.7601.21650 (Windows 7 SP1 with KB2479710)
6.1.7601.21866 (Windows 7 SP1 with KB2647409)
6.1.7601.22104 (Windows 7 SP1 with KB2750090)
6.1.7601.18540 (Windows 7 SP1 with KB2984972 GDR)
6.1.7601.22750 (Windows 7 SP1 with KB2984972 LDR)
6.1.7601.18637 (Windows 7 SP1 with KB3003743 GDR)
6.1.7601.22843 (Windows 7 SP1 with KB3003743 LDR)
6.1.7601.23403 (Windows 7 SP1 with KB3125574)
6.1.7601.24234 (Windows 7 SP1 with KB4462923)
6.2.8102.0 (Windows 8 Developer Preview)
6.2.8250.0 (Windows 8 Consumer Preview)
6.2.8400.0 (Windows 8 Release Preview)
6.2.9200.16384 (Windows 8 / Server 2012)
6.2.9200.17048 (Windows 8 with KB2973501 GDR)
6.2.9200.21166 (Windows 8 with KB2973501 LDR)
6.3.9431.0 (Windows 8.1 Preview)
6.3.9600.16384 (Windows 8.1 / Server 2012 R2)
6.3.9600.17095 (Windows 8.1 with KB2959626)
6.3.9600.17415 (Windows 8.1 with KB3000850)
6.3.9600.18692 (Windows 8.1 with KB4022720)
6.3.9600.18708 (Windows 8.1 with KB4025335)
6.3.9600.18928 (Windows 8.1 with KB4088876)
6.3.9600.19093 (Windows 8.1 with KB4343891)
6.4.9841.0 (Windows 10 Technical Preview)
6.4.9860.0 (Windows 10 Technical Preview Update 1)
6.4.9879.0 (Windows 10 Technical Preview Update 2)
10.0.9926.0 (Windows 10 Pro Technical Preview)
10.0.10041.0 (Windows 10 Pro Technical Preview Update 1)
10.0.10240.16384 (Windows 10 RTM)
10.0.10586.0 (Windows 10 TH2 Release 151029-1700)
10.0.10586.589 (Windows 10 TH2 Release 160906-1759 with KB3185614)
10.0.11082.1000 (Windows 10 RS1 Release 151210-2021)
10.0.11102.1000 (Windows 10 RS1 Release 160113-1800)
10.0.14251.1000 (Windows 10 RS1 Release 160124-1059)
10.0.14271.1000 (Windows 10 RS1 Release 160218-2310)
10.0.14279.1000 (Windows 10 RS1 Release 160229-1700)
10.0.14295.1000 (Windows 10 RS1 Release 160318-1628)
10.0.14300.1000 (Windows Server 2016 Technical Preview 5)
10.0.14316.1000 (Windows 10 RS1 Release 160402-2227)
10.0.14328.1000 (Windows 10 RS1 Release 160418-1609)
10.0.14332.1001 (Windows 10 RS1 Release 160422-1940)
10.0.14342.1000 (Windows 10 RS1 Release 160506-1708)
10.0.14352.1002 (Windows 10 RS1 Release 160522-1930)
10.0.14366.0 (Windows 10 RS1 Release 160610-1700)
10.0.14367.0 (Windows 10 RS1 Release 160613-1700)
10.0.14372.0 (Windows 10 RS1 Release 160620-2342)
10.0.14379.0 (Windows 10 RS1 Release 160627-1607)
10.0.14383.0 (Windows 10 RS1 Release 160701-1839)
10.0.14385.0 (Windows 10 RS1 Release 160706-1700)
10.0.14388.0 (Windows 10 RS1 Release 160709-1635)
10.0.14393.0 (Windows 10 RS1 Release 160715-1616)
10.0.14393.1198 (Windows 10 RS1 Release Sec 170427-1353 with KB4019472)
10.0.14393.1737 (Windows 10 RS1 Release Inmarket 170914-1249 with KB4041691)
10.0.14393.2457 (Windows 10 RS1 Release Inmarket 180822-1743 with KB4343884)
10.0.14901.1000 (Windows 10 RS Pre-Release 160805-1700)
10.0.14905.1000 (Windows 10 RS Pre-Release 160811-1739)
10.0.14915.1000 (Windows 10 RS Pre-Release 160826-1902)
10.0.14926.1000 (Windows 10 RS Pre-Release 160910-1529)
10.0.14931.1000 (Windows 10 RS Pre-Release 160916-1700)
10.0.14936.1000 (Windows 10 RS Pre-Release 160923-1700)
10.0.14942.1000 (Windows 10 RS Pre-Release 161003-1929)
10.0.14946.1000 (Windows 10 RS Pre-Release 161007-1700)
10.0.14951.1000 (Windows 10 RS Pre-Release 161014-1700)
10.0.14955.1000 (Windows 10 RS Pre-Release 161020-1700)
10.0.14959.1000 (Windows 10 RS Pre-Release 161026-1700)
10.0.14965.1001 (Windows 10 RS Pre-Release 161104-1700)
10.0.14971.1000 (Windows 10 RS Pre-Release 161111-1700)
10.0.14986.1000 (Windows 10 Build 160101.0800)
10.0.14997.1001 (Windows 10 Build 160101.0800)
10.0.15002.1001 (Windows 10 Build 160101.0800)
10.0.15007.1000 (Windows 10 Build 160101.0800)
10.0.15014.1000 (Windows 10 Build 160101.0800)
10.0.15019.1000 (Windows 10 RS Pre-Release 170121-1513)
10.0.15025.1000 (Windows 10 RS Pre-Release 170127-1750)
10.0.15031.0 (Windows 10 RS2 Release 170204-1546)
10.0.15042.0 (Windows 10 RS2 Release 170219-2329)
10.0.15046.0 (Windows 10 Build 160101.0800)
10.0.15048.0 (Windows 10 Build 160101.0800)
10.0.15055.0 (Windows 10 Build 160101.0800)
10.0.15058.0 (Windows 10 Build 160101.0800)
10.0.15061.0 (Windows 10 Build 160101.0800)
10.0.15063.0 (Windows 10 Build 160101.0800)
10.0.15063.296 (Windows 10 Build 160101.0800)
10.0.15063.994 (Windows 10 Build 160101.0800)
10.0.15063.1155 (Windows 10 Build 160101.0800)
10.0.16179.1000 (Windows 10 Build 160101.0800)
10.0.16184.1001 (Windows 10 Build 160101.0800)
10.0.16199.1000 (Windows 10 Build 160101.0800)
10.0.16215.1000 (Windows 10 Build 160101.0800)
10.0.16232.1000 (Windows 10 Build 160101.0800)
10.0.16237.1001 (Windows 10 Build 160101.0800)
10.0.16241.1001 (Windows 10 Build 160101.0800)
10.0.16251.0 (Windows 10 Build 160101.0800)
10.0.16251.1000 (Windows 10 Build 160101.0800)
10.0.16257.1 (Windows 10 Build 160101.0800)
10.0.16257.1000 (Windows 10 Build 160101.0800)
10.0.16273.1000 (Windows 10 Build 160101.0800)
10.0.16275.1000 (Windows 10 Build 160101.0800)
10.0.16278.1000 (Windows 10 Build 160101.0800)
10.0.16281.1000 (Windows 10 Build 160101.0800)
10.0.16288.1 (Windows 10 Build 160101.0800)
10.0.16291.0 (Windows 10 Build 160101.0800)
10.0.16294.1 (Windows 10 Build 160101.0800)
10.0.16296.0 (Windows 10 Build 160101.0800)
10.0.16299.0 (Windows 10 Build 160101.0800)
10.0.16299.15 (Windows 10 Build 160101.0800)
10.0.16353.1000 (Windows 10 Build 160101.0800)
10.0.16362.1000 (Windows 10 Build 160101.0800)
10.0.17004.1000 (Windows 10 Build 160101.0800)
10.0.17017.1000 (Windows 10 Build 160101.0800)
10.0.17025.1000 (Windows 10 Build 160101.0800)
10.0.17035.1000 (Windows 10 Build 160101.0800)
10.0.17046.1000 (Windows 10 Build 160101.0800)
10.0.17063.1000 (Windows 10 Build 160101.0800)
10.0.17115.1 (Windows 10 Build 160101.0800)
10.0.17128.1 (Windows 10 Build 160101.0800)
10.0.17133.1 (Windows 10 Build 160101.0800)
10.0.17134.1 (Windows 10 Build 160101.0800)
10.0.17723.1000 (Windows 10 Build 160101.0800)
10.0.17763.1 (Windows 10 Build 160101.0800)

Confirmed working on:

Windows Vista Starter (x86 - Service Pack 1 and higher)
Windows Vista Home Basic
Windows Vista Home Premium
Windows Vista Business
Windows Vista Enterprise
Windows Vista Ultimate
Windows Server 2008
Windows 7 Starter
Windows 7 Home Basic
Windows 7 Home Premium
Windows 7 Professional
Windows 7 Enterprise
Windows 7 Ultimate
Windows Server 2008 R2
Windows 8 Developer Preview
Windows 8 Consumer Preview
Windows 8 Release Preview
Windows 8
Windows 8 Single Language
Windows 8 Pro
Windows 8 Enterprise
Windows Server 2012
Windows 8.1 Preview
Windows 8.1
Windows 8.1 Connected (with Bing)
Windows 8.1 Single Language
Windows 8.1 Connected Single Language (with Bing)
Windows 8.1 Pro
Windows 8.1 Enterprise
Windows Server 2012 R2
Windows 10 Technical Preview
Windows 10 Pro Technical Preview
Windows 10 Home
Windows 10 Home Single Language
Windows 10 Pro
Windows 10 Enterprise
Windows Server 2016 Technical Preview

Installation instructions:

Download RDPWrapper-<version>.msi from the GitHub Releases page
Double-click the MSI and accept the UAC prompt — the installer detects your architecture automatically
See command output for details

To update INI file:

Open an Administrator command prompt in %ProgramFiles%\RDP Wrapper
Run RDPWInst_x64.exe -w (or RDPWInst_x86.exe -w on 32-bit Windows)
See command output for details

To uninstall:

Open Add or Remove Programs and uninstall RDP Wrapper Library
Alternatively run msiexec /x RDPWrapper-<version>.msi from an elevated prompt

README.md

RDP Wrapper Library

Screenshots

Attention:

Information:

Key features:

Porting to other platforms:

Repository structure:

Building the binaries:

Prerequisites

Clone with submodules

Build C# tools locally

Build `rdpwrap.dll` locally

Build `RDPWrapOffsetFinder` locally

CI/CD Pipelines:

Links:

Tutorial videos:

Files in release package:

Frequently Asked Questions

Known issues:

Change log:

2026.03.31

2026.03.30

2026.03.29

2017.12.27

2016.08.01

2015.08.12

2014.12.11

2014.11.14

2014.10.21

2014.10.20

2014.07.26

2013.12.09

2013.10.25

2013.10.22

2013.10.19

Supported Terminal Services versions:

Confirmed working on:

README.md

RDP Wrapper Library

Screenshots

Attention:

Information:

Key features:

Porting to other platforms:

Repository structure:

Building the binaries:

Prerequisites

Clone with submodules

Build C# tools locally

Build rdpwrap.dll locally

Build RDPWrapOffsetFinder locally

CI/CD Pipelines:

Links:

Tutorial videos:

Files in release package:

Frequently Asked Questions

Known issues:

Change log:

2026.03.31

2026.03.30

2026.03.29

2017.12.27

2016.08.01

2015.08.12

2014.12.11

2014.11.14

2014.10.21

2014.10.20

2014.07.26

2013.12.09

2013.10.25

2013.10.22

2013.10.19

Supported Terminal Services versions:

Confirmed working on:

Build `rdpwrap.dll` locally

Build `RDPWrapOffsetFinder` locally
